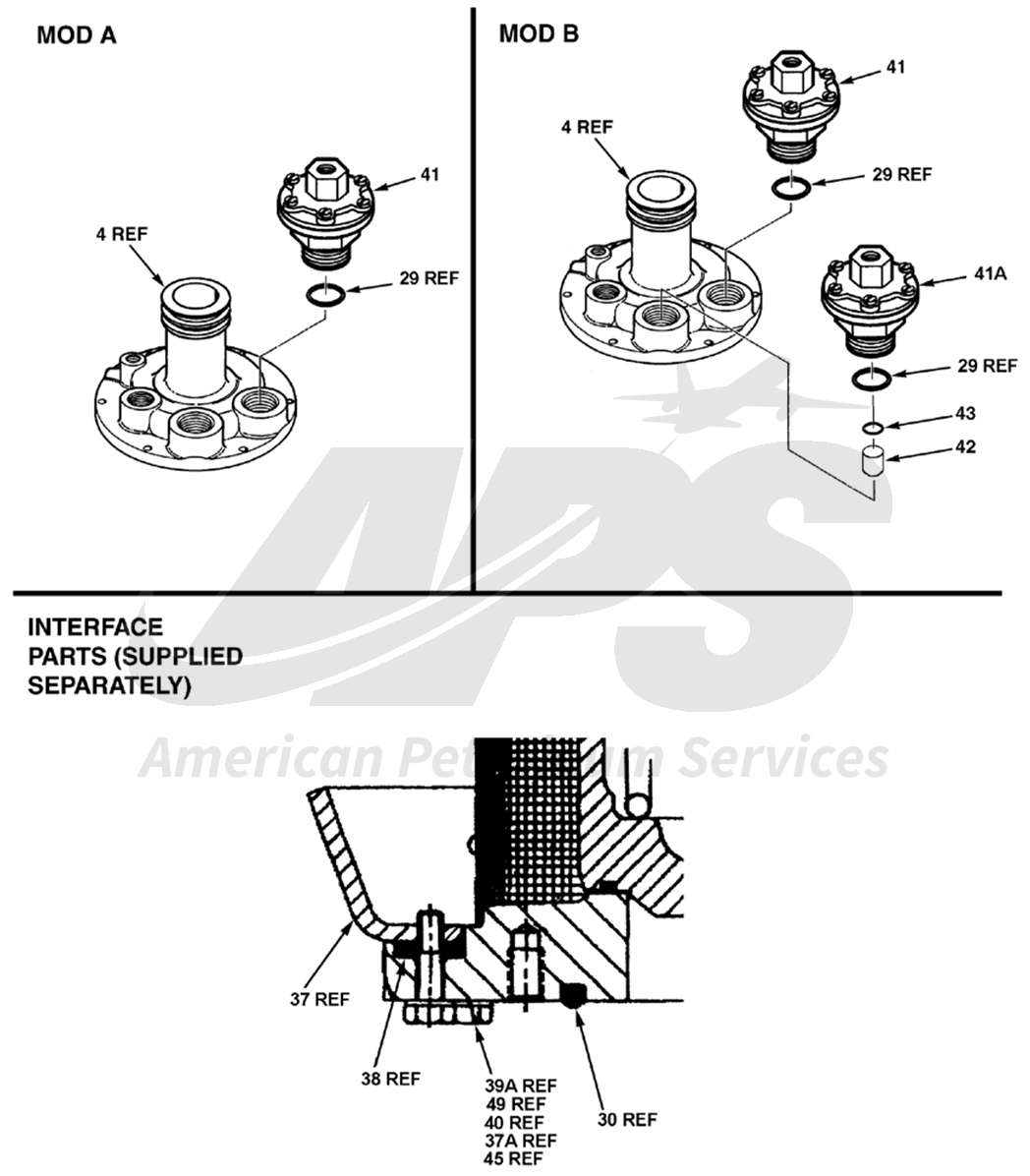

F620 INTERNAL VALVE ASSEMBLY REPLACEMENT PARTS - Image 2

PART # F620-VRP

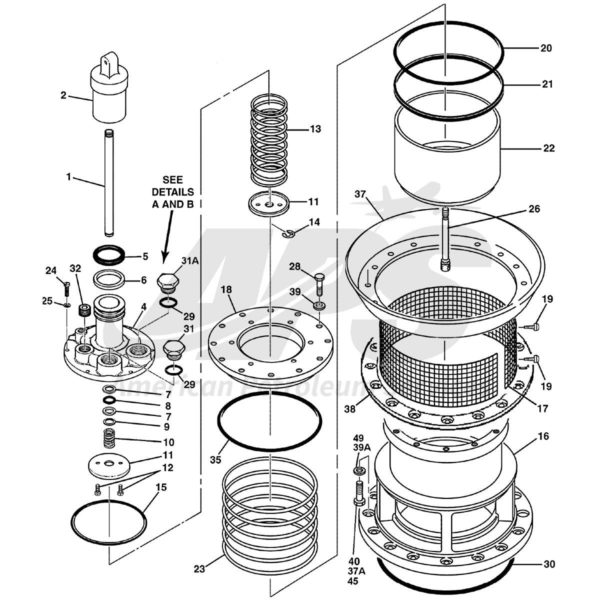

F620 INTERNAL VALVE ASSEMBLY REPLACEMENT PARTS

Price range: $0.96 through $1,816.19

Select Part # and Quantity

PART #	DESCRIPTION	PRICE	QUANTITY
Q4325-366Y	QUAD RING ITEM: 5UNIT/ASSY: 1 USUALLY SHIPS IN 24-48 HOURS	$14.22	QTY
LP503-10-8	SCREW, SELF-LOCKING ITEM: 12UNIT/ASSY: 2 USUALLY SHIPS IN 45-60 DAYS	$21.37	QTY
2701293	PISTON ASSEMBLY ITEM: 22UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$1,816.19	QTY
2681171-441	SEAL ITEM: 21UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$208.09	QTY
2661058BD441	PACKING O-RING ITEM: 20UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$58.65	QTY
2661058A365	PACKING O-RING ITEM: 30MOD: BSC/A-E/GUNIT/ASSY: 2 USUALLY SHIPS IN 24-48 HOURS	$34.56	QTY
2701295	ROD FOR F620 INTERNAL VALVE ITEM: 26UNIT/ASSY: 1 USUALLY SHIPS IN 24-48 HOURS	$399.15	QTY
2661058A166	PACKING O-RING ITEM: 35UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$38.98	QTY
2701296-2	SUMP, 6 INCH ITEM: 37AMOD: GUNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$746.25	QTY
2701365	SEAL ITEM: 38MOD: BSC/A-E/GUNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$87.00	QTY
CAN4-10	BOLT, MACHINE ITEM: 40MOD: BSC/A/B/D/EUNIT/ASSY: 16 USUALLY SHIPS IN 45-60 DAYS	$7.26	QTY
CAN935-616L	WASHER, LOCK ITEM: 48MOD: EUNIT/ASSY: 12 USUALLY SHIPS IN 45-60 DAYS	$1.62	QTY
2681180	ROD ITEM: 1UNIT/ASSY: 1 USUALLY SHIPS IN 24-48 HOURS	$356.99	QTY
CMS28932C05-05	STRIP, FELT ITEM: 6UNIT/ASSY: 1 USUALLY SHIPS IN 24-48 HOURS	$19.91	QTY
2681181	COVER ITEM: 2UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$391.48	QTY
2681184	RING, BACKUP ITEM: 7UNIT/ASSY: 2 USUALLY SHIPS IN 45-60 DAYS	$20.59	QTY
2681186	WASHER, FLAT ITEM: 9UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$9.87	QTY
2681188	RETAINER ITEM: 11UNIT/ASSY: 2 USUALLY SHIPS IN 45-60 DAYS	$45.14	QTY
2661058BD206	PACKING O-RING ITEM: 8UNIT/ASSY: 1 USUALLY SHIPS IN 24-48 HOURS	$11.74	QTY
2681187	SPRING, COMPRESSION ITEM: 10UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$21.68	QTY
CMS16633-4050	RING, RETAINING ITEM: 14UNIT/ASSY: 1 USUALLY SHIPS IN 24-48 HOURS	$24.88	QTY
2681189	SPRING, COMPRESSION ITEM: 13UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$47.72	QTY
2661058A157	PACKING O-RING ITEM: 15UNIT/ASSY: 1 USUALLY SHIPS IN 24-48 HOURS	$13.75	QTY
CMS29512-10	PACKING, PREFORMED ITEM: 29UNIT/ASSY: 2 USUALLY SHIPS IN 45-60 DAYS	$3.75	QTY
CAN935-10	WASHER, LOCK ITEM: 25UNIT/ASSY: 6 USUALLY SHIPS IN 45-60 DAYS	$1.62	QTY

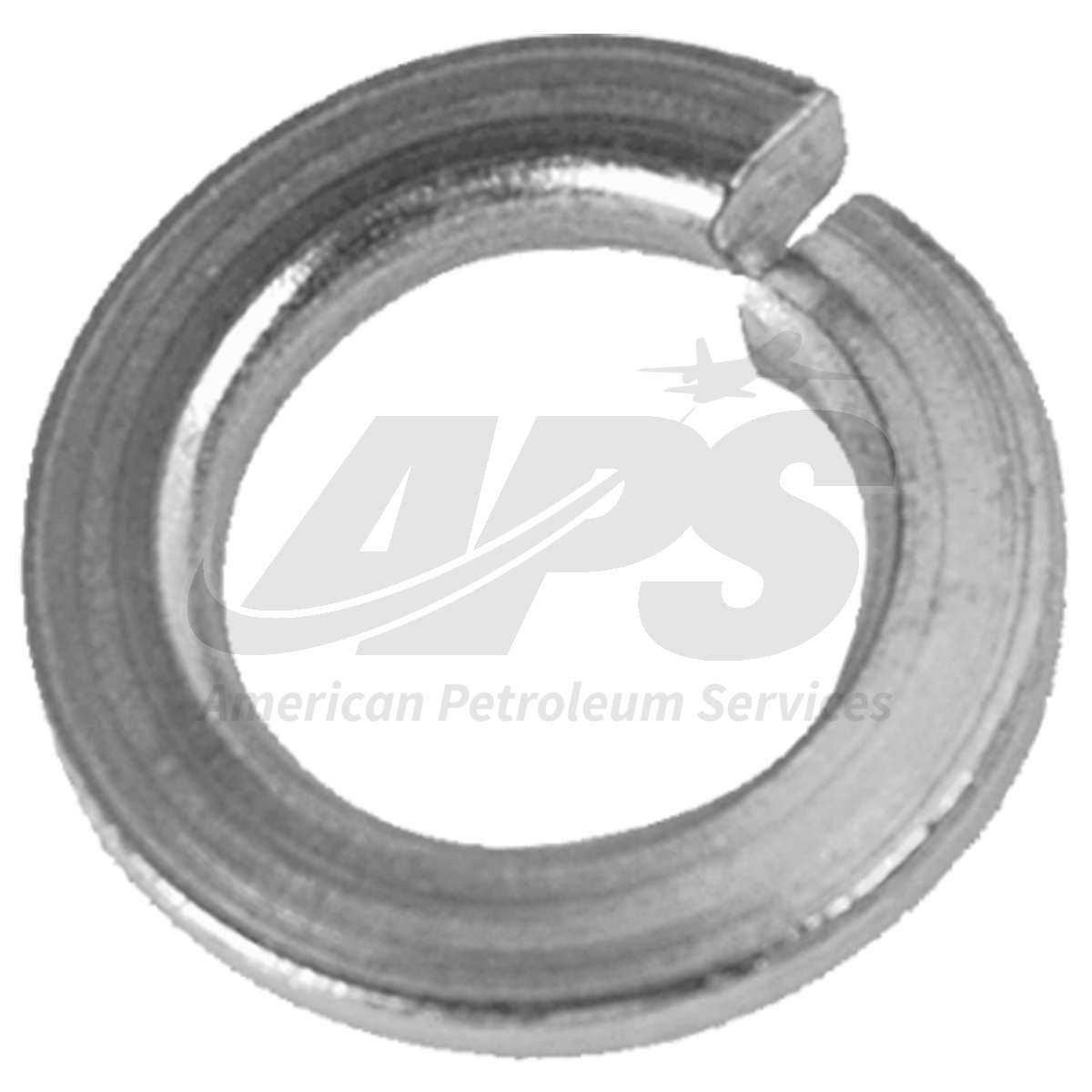

CMS35338-43	WASHER, LOCK USUALLY SHIPS IN	$0.96	QTY
CAN960-416	WASHER, FLAT ITEM: 39UNIT/ASSY: 12 USUALLY SHIPS IN 24-48 HOURS	$1.77	QTY
2681193	PILOT VALVE FOR F614/F620 INTERNAL VALVES ITEM: 41MOD: A/BUNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$591.17	QTY
2661058A114	PACKING O-RING ITEM: 43MOD: BUNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$4.24	QTY
2706770-139	WASHER, LOCK ITEM: 49MOD: GUNIT/ASSY: 16 USUALLY SHIPS IN 24-48 HOURS	$1.85	QTY

Orders placed before 2pm EST will ship same day
