CLICK IMAGE TO ENLARGE

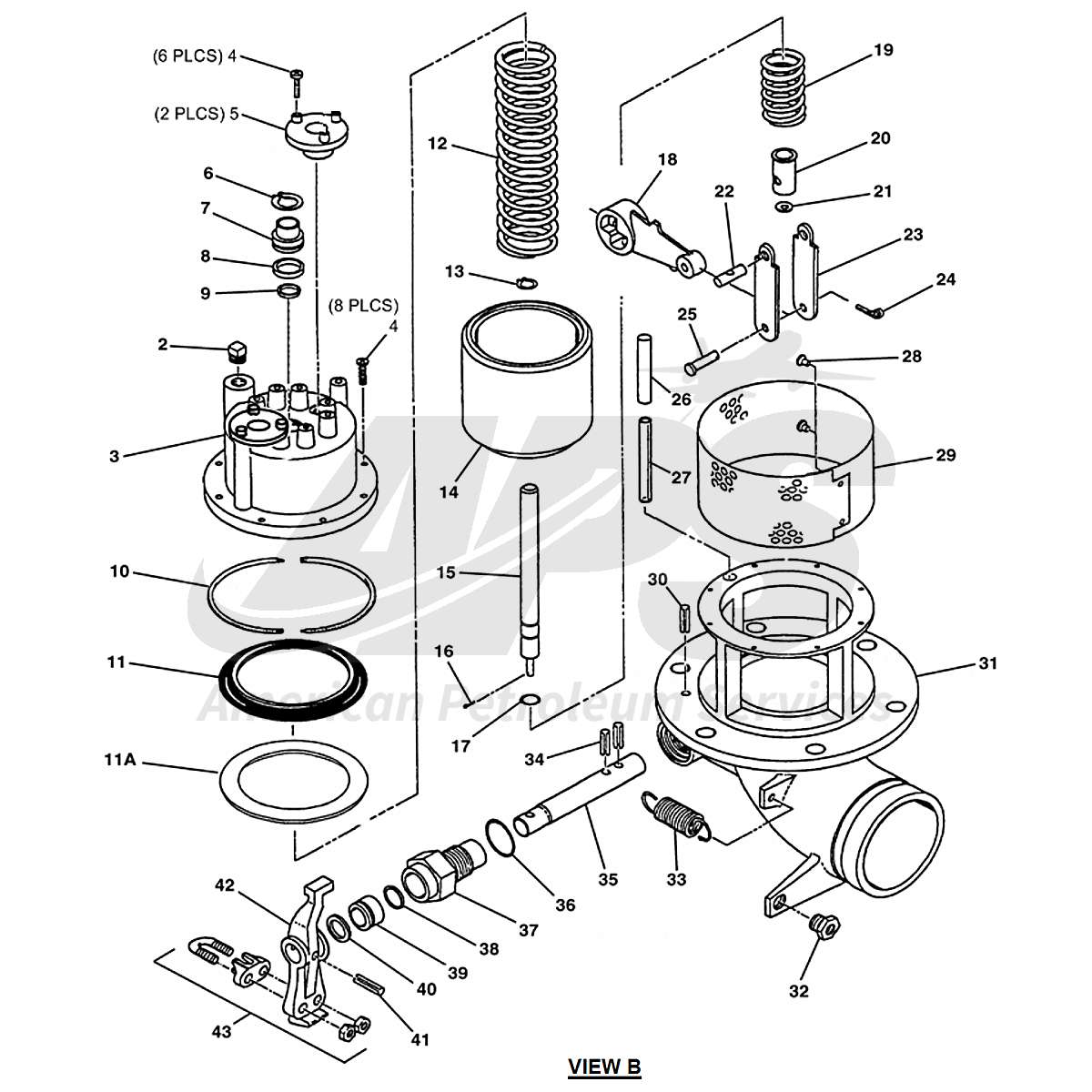

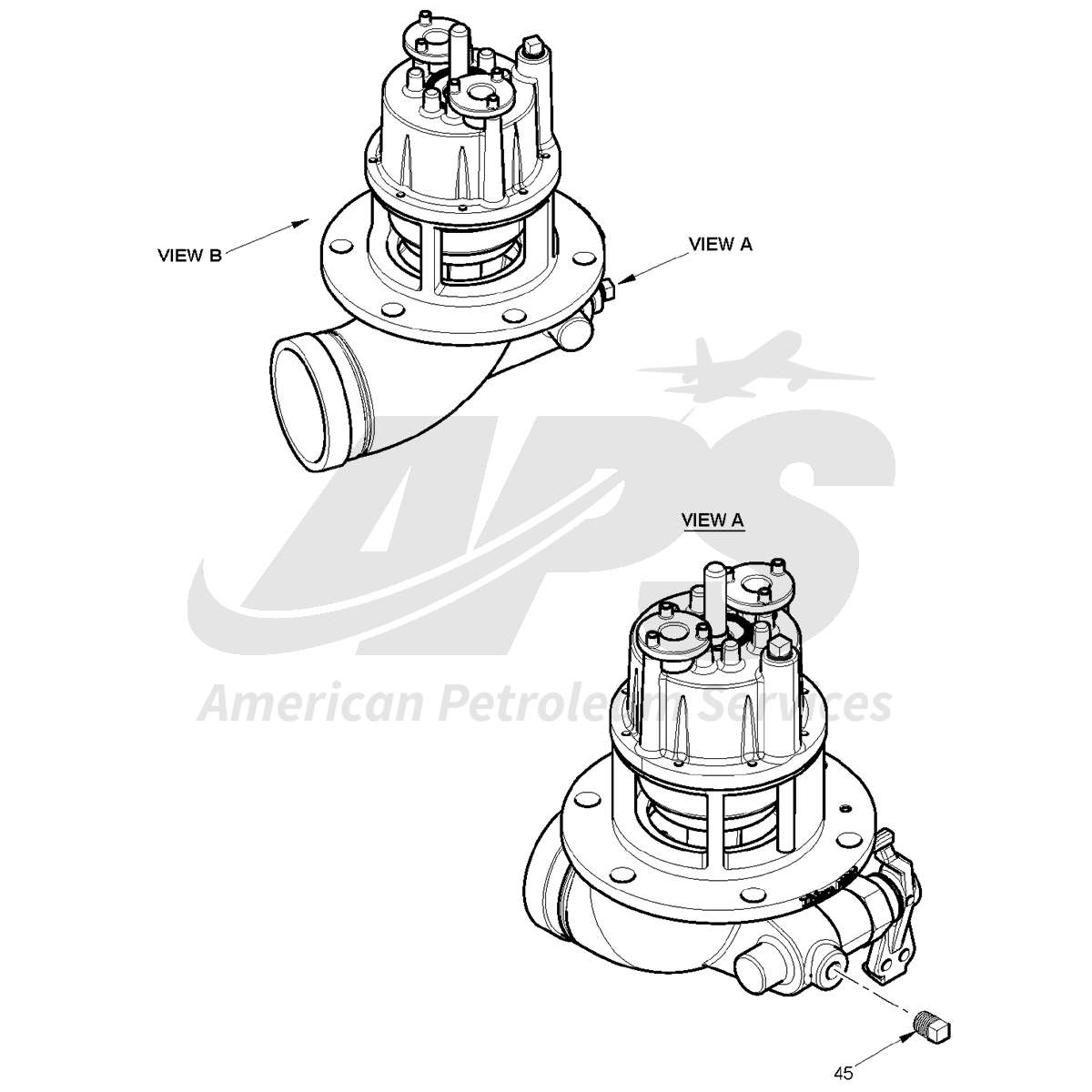

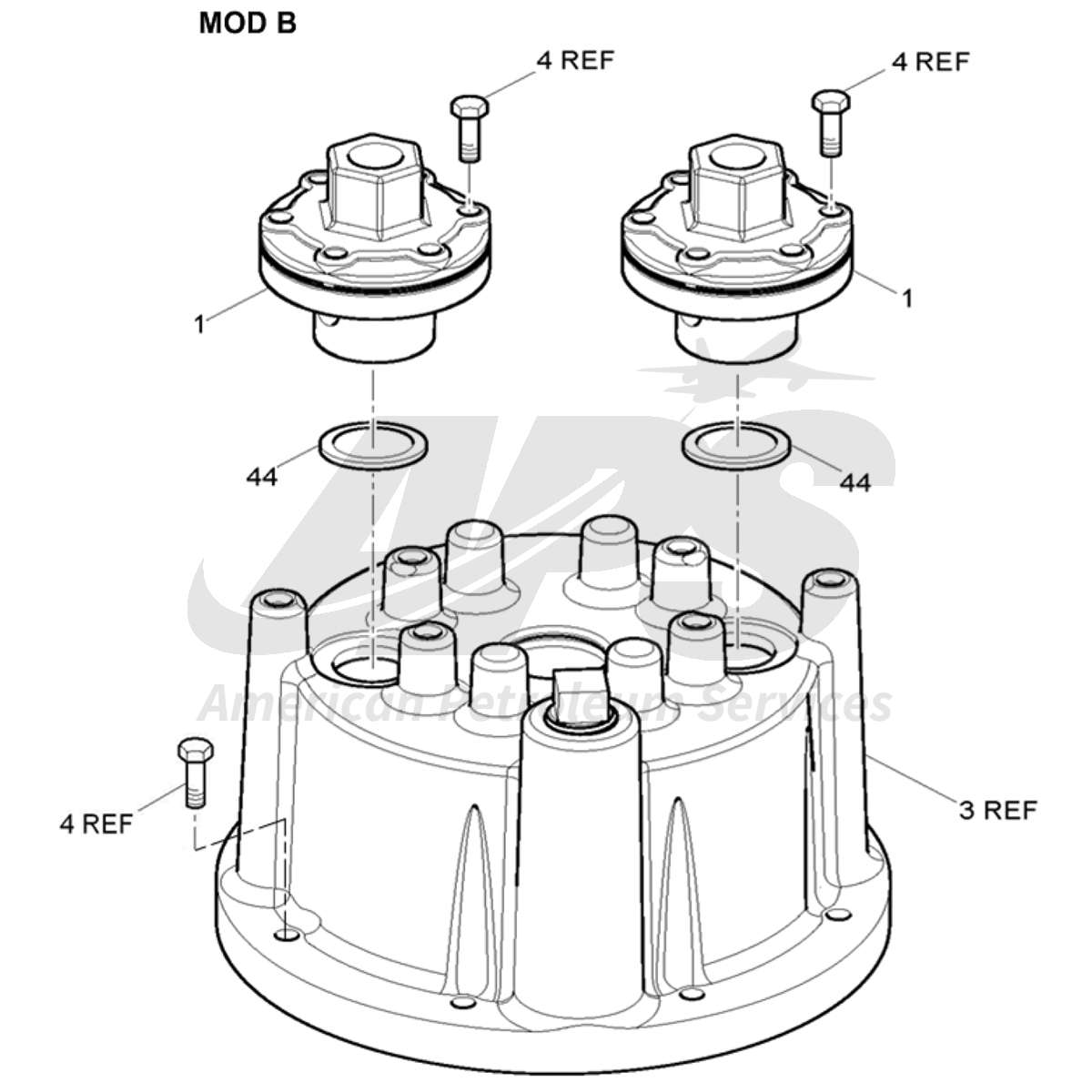

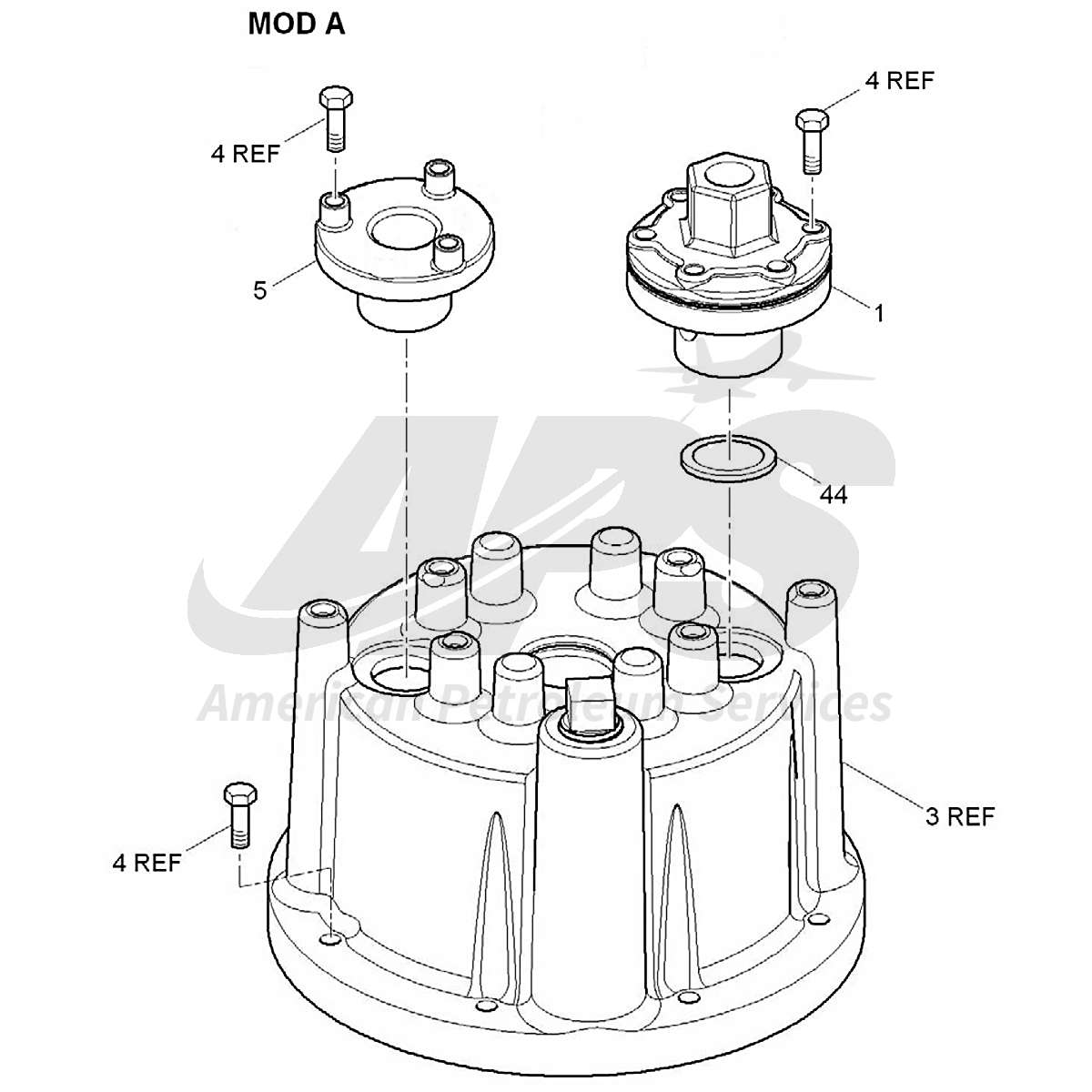

F660 INTERNAL VALVE ASSEMBLY REPLACEMENT PARTS - Image 2

PART # F660-VRP

F660 INTERNAL VALVE ASSEMBLY REPLACEMENT PARTS

Price range: $1.24 through $784.24

Select Part # and Quantity

PART #	DESCRIPTION	PRICE	QUANTITY
KITF660-101	OVERHAUL KIT FOR F660 INTERNAL VALVE USUALLY SHIPS IN 24-48 HOURS	$309.96	QTY
KITF660-301	SEAL KIT FOR F660 INTERNAL VALVE (ENHANCED PERFORMANCE, W/ SEAL BACKUP RING FOR FLOW RATES OVER 400 GPM) USUALLY SHIPS IN 45-60 DAYS	$184.57	QTY
Q4112-366Y	QUAD RING ITEM: 9UNIT/ASSY: 1 USUALLY SHIPS IN 24-48 HOURS	$31.10	QTY
Q4114-366Y	QUAD RING ITEM: 38UNIT/ASSY: 1 USUALLY SHIPS IN 24-48 HOURS	$18.67	QTY
2775237-101	VALVE, PILOT ITEM: 1MOD: AUNIT/ASSY: 1 USUALLY SHIPS IN 24-48 HOURS	$392.71	QTY
2706138-101	PLUG ITEM: 45UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$2.64	QTY
2775247-101	PLUG MOD: AUNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$8.40	QTY
2775029-101	CAP ITEM: 3UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$784.24	QTY
2775041-101	SPRING, GARTER ITEM: 10UNIT/ASSY: 2 USUALLY SHIPS IN 45-60 DAYS	$26.67	QTY
2793497-101	SLEEVE ITEM: 7UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$31.98	QTY
2661058BD016	PACKING O-RING ITEM: 8UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$5.14	QTY
5008-81	RING, RETAINING ITEM: 6UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$5.07	QTY
2775039-102	SEAL ITEM: 11UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$31.25	QTY
981001-101	RING, BACKUP ITEM: 11AMOD: CUNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$55.10	QTY
2775036-101	CAM ITEM: 18UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$97.49	QTY
CMS16624-4050	RING, RETAINING ITEM: 13UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$5.63	QTY
CMS24665-82	PIN, COTTER ITEM: 16UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$2.37	QTY
2793080-101	SHAFT ITEM: 15UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$95.81	QTY
2706155-118	SPRING, COMPRESSION ITEM: 12UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$95.38	QTY
2775031-101	PISTON, MAIN ITEM: 14UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$736.64	QTY
2793081-101	PIN, LIMIT ITEM: 22UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$16.80	QTY
2793082-101	ORIFICE ITEM: 20UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$49.61	QTY
2775034-101	LINK ITEM: 23UNIT/ASSY: 2 USUALLY SHIPS IN 45-60 DAYS	$31.08	QTY
2793089-101	WASHER, RETAINER ITEM: 21UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$32.90	QTY
2775153-101	SCREEN ITEM: 29UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$140.88	QTY
2775052-101	TUBE (ALUMINUM) ITEM: 27UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$29.44	QTY
2775053-101	TUBE ITEM: 26UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$21.87	QTY
CMS24665-151	PIN, COTTER ITEM: 24UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$1.24	QTY
98306A159	PIN, CLEVIS ITEM: 25UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$4.33	QTY
2775163-101	SPRING, TENSION ITEM: 33UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$26.72	QTY
2775154-101	SHAFT ITEM: 35UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$148.73	QTY
2721205-1	BUSHING ITEM: 32UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$26.89	QTY
CMS171651	PIN, SPRING ITEM: 34UNIT/ASSY: 2 USUALLY SHIPS IN 45-60 DAYS	$2.62	QTY

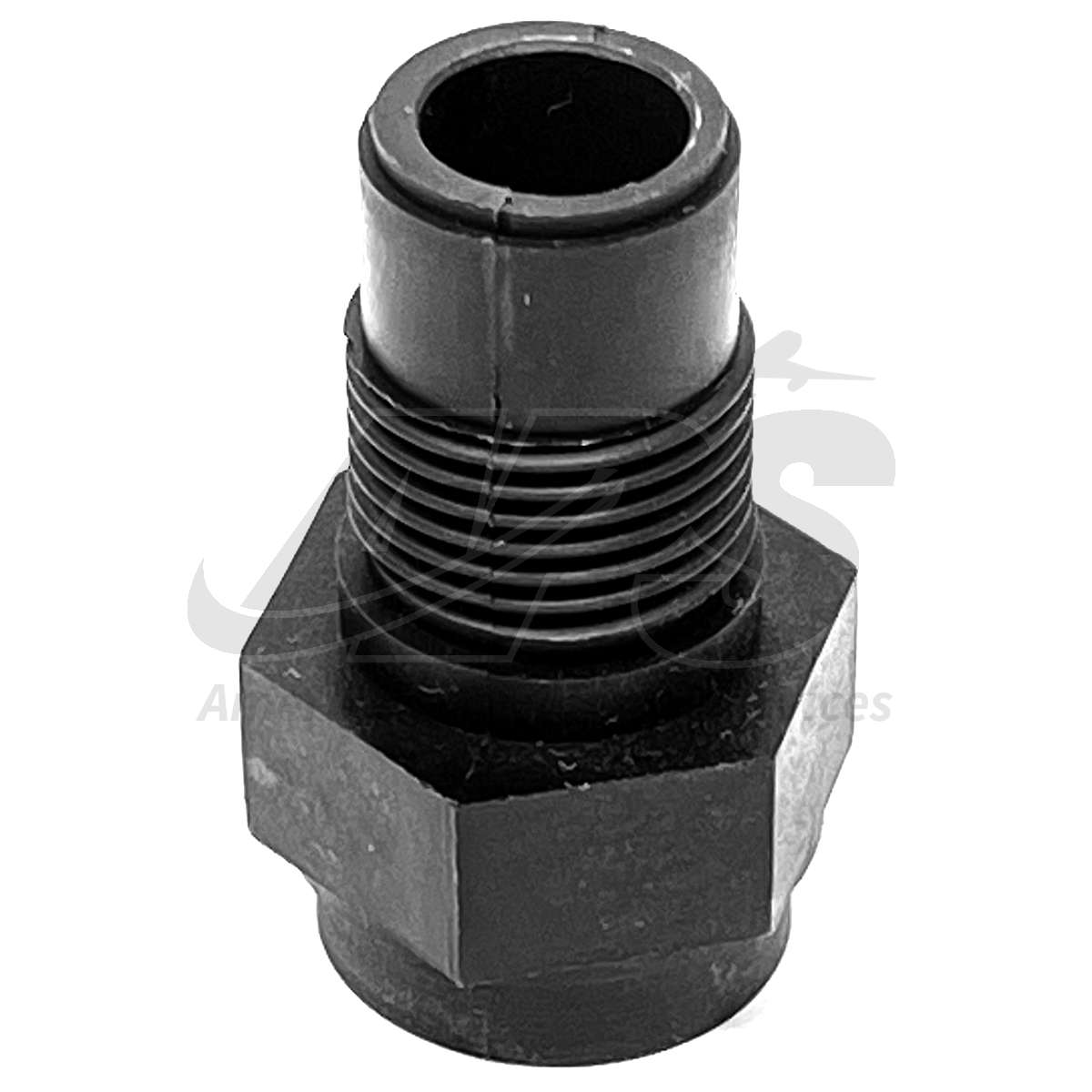

2775042-101	GLAND FOR F660 INTERNAL VALVE ITEM: 37UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$67.91	QTY
2793360-101	BUSHING FOR F660 INTERNAL VALVE ITEM: 39UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$79.93	QTY
2661058BD121	PACKING O-RING ITEM: 36UNIT/ASSY: 1 USUALLY SHIPS IN 24-48 HOURS	$6.37	QTY
2661058BD116	PACKING O-RING ITEM: 40UNIT/ASSY: 1 USUALLY SHIPS IN 24-48 HOURS	$2.51	QTY
30325T27	CLIP, WIRE ITEM: 43UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$9.60	QTY
2775038-101	LEVER ITEM: 42UNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$214.20	QTY
2661058A016	PACKING O-RING ITEM: 44MOD: AUNIT/ASSY: 1 USUALLY SHIPS IN 45-60 DAYS	$4.24	QTY
2706560C0832075	SCREW, MACHINE MOD: BUNIT/ASSY: 2 USUALLY SHIPS IN 45-60 DAYS	$1.33	QTY

Orders placed before 2pm EST will ship same day
