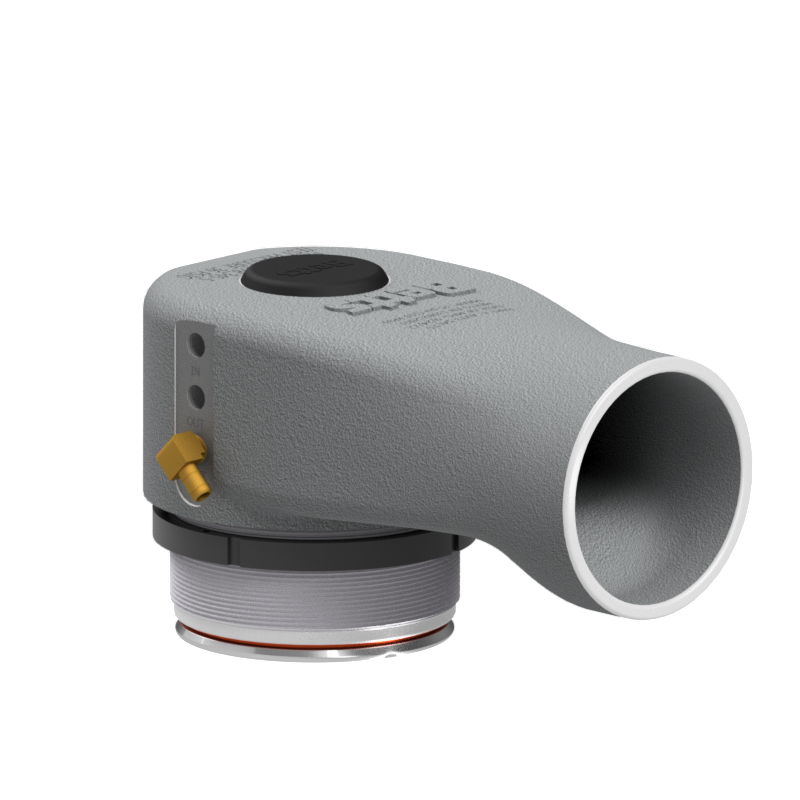

3.5″ ALUMINUM PNEUMATIC VAPOR VALVE THREADED MOUNT (3.5" INTERLOCK VAPOR VALVE, FEP TEFLON® ENCAPSULATED)

The aluminum 3.5” (89mm) pneumatically actuated interlock vapor valve is designed as a vapor transfer valve for use on DOT cargo tanks and can be used to facilitate vapor recovery. The valve is tested and certified to EN13082:2008+A1:2012 with markings per US DOT 49CFR§178.345-5(f). The sequential interlock design allows the vapor valve to be plumbed in series with the outlet valve at the bottom of the tank, to ensure the vapor valve opens before the outlet valve.

See the main product page for full details and other available configurations.

Specifications

• Part Number: AVT3.5ALTS
• Description: 3.5" Interlock Vapor Valve
• Main Seat O-Ring: FEP Teflon® Encapsulated
• Mounting O-Ring: FKM-A
• Stem O-Ring: FVMQ
• Temp. Range : -50°F to +350°F [-45°C to 176°C]
• Weight: 3.6 lbs
