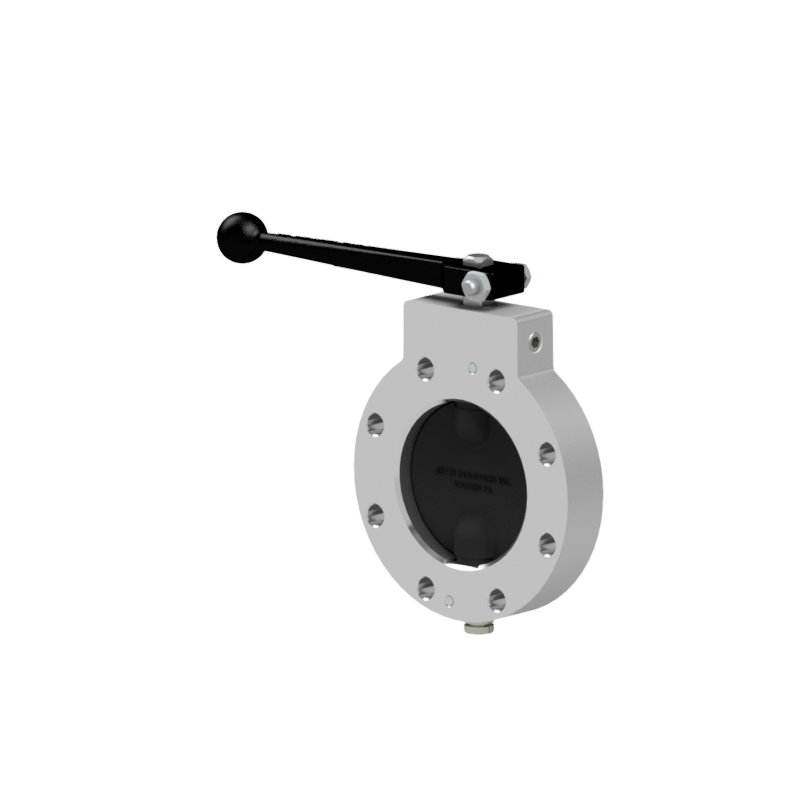

3″ MANUALLY OPERATED TTMA DETENT WET-R-DRI BUTTERFLY VALVE (BLACK NITRILE (BUNA-N), ALUMINUM)

The Betts Wet-R-Dri Valve is a lightweight and compact quarter turn in-line stop valve. This easily maintained and versatile valve is widely used for liquid, gaseous or dry products and is available in a variety of sizes. The manual detent model provides a positive stop in the open and closed position as well as a detent spring and ball which assist in holding the disc in the open or closed position.

See the main product page for full details and other available configurations.

Specifications

• Part Number: WD301ALB
• Seal Material: Black Nitrile (Buna-N)
• Body Material: Aluminum
• Dimensions: A: 6 3/4" (171.5 mm) B: 4 5/8" (117.5mm) C: 1 1/8" (28.6 mm) O.D.: 5 5/8" (142.9 mm) I.D.: 3 3/8" (85.7 mm) B.C.: 4 7/8" (123.8 mm) Holes: 8-7/16" (8-11 mm)
• Maximum Working Pressure: 75 psi (5.17 bar)
• Weight: 3.6 lbs
