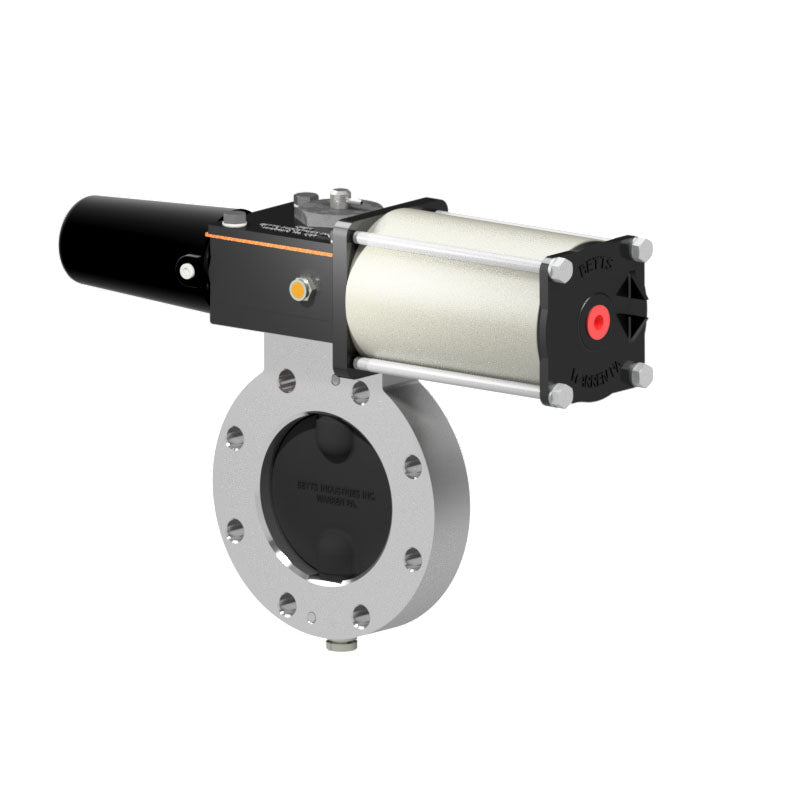

3″ PNEUMATIC & HYDRAULIC OPERATED TTMA WET-R-DRI BUTTERFLY VALVE (WHITE FDA NITRILE (BUNA-N), ALUMINUM)

The Betts Wet-R-Dri Valve is a lightweight and compact quarter turn in-line stop valve. This easily maintained and versatile valve is widely used for liquid, gaseous or dry products and is available in a variety of sizes. This valve comes with an actuator that opens and closes the valve and provides a visual indicator that clearly shows the orientation of the valve disc.

See the main product page for full details and other available configurations.

Specifications

• Part Number: WD317ALWB
• Seal Material: White FDA Nitrile (Buna-N)
• Assembly Number Air/Spring (Model 19): WD319AL
• Assembly Number Hydraulic/Spring (Model 18): WD318AL
• Body Material: Aluminum
• Dimensions: A: 13 7/16" (341.3 mm) B: 6 5/32" (156.4 mm) C: 1 1/8" (28.6 mm) D: 17" (431.8 mm) O.D.: 5 5/8" (142.9 mm) I.D.: 3 3/8" (85.7 mm) B.C.: 4 7/8" (123.8 mm) Holes: 8 - 7/16" (8-11 mm)
• Maximum Working Pressure: 75 psi (5.17 bar)
• Weight: 7.5 lbs
