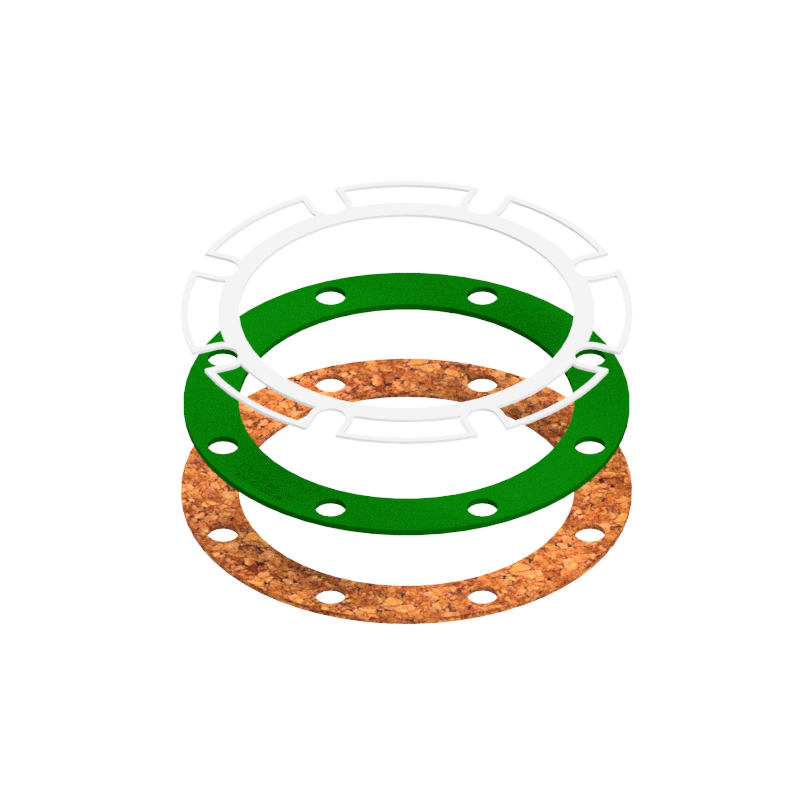

4″ DRAIN SUMP GASKET (TTMA) (PTFE W/ INORGANIC FILLERS (ONE PIECE SOLID GASKET))

Betts flange gaskets are available in a variety of compounds in order to satisfy a wide range of service requirements. The full-face gaskets are ideal for low-torque sealing applications on drain sumps and valve mounting. Bolt-hole patterns are in accordance with TTMA recommended practice. Depending on gasket size, all materials may not be available.

See the main product page for full details and other available configurations.

Specifications

• Part Number: G15266TD
• Gasket Material: PTFE w/ Inorganic Fillers (One piece solid gasket)
• I.D.: 6.13" [155.6 mm]
• O.D.: 8.25" [209.6 mm]
• B.C.: 7.25" [184.2 mm]
• # of Holes: 8
• Hole Dia.: .56" [14.2 mm]
