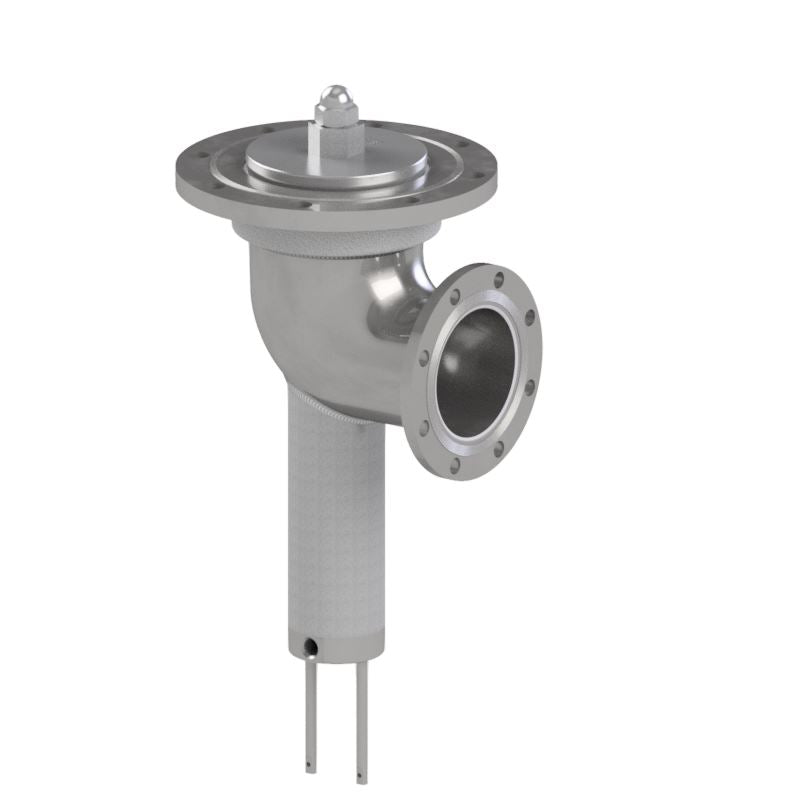

4×3 EXTERNAL CHEMICAL HYDRAULIC VALVE (316 SS W/ PTFE SEAT)

Betts External Chemical Hydraulic Valve is classified as an external self-closing stop valve and is widely used on DOT407 and 412 cargo tanks. This is a robust and proven valve that satisfies the many requirements of the chemical transportation industry. The 316 stainless steel construction with optional Hastelloy® overlay and replaceable Teflon™ seat make this valve a versatile and reliable workhorse for any fleet.

See the main product page for full details and other available configurations.

Specifications

• Part Number: CH46955SST
• Disc Material: 316 SS w/ PTFE Seat
• Inlet Flange (4" Sump): B.C.: 7.25" Dia. [184 mm] 8 Holes: .563" Dia. [14.3 mm]
• Outlet (TTMA): B.C.: 4.88" Dia. [124 mm] 8 Holes: .438" Dia. [11.1 mm]
• Dims. A: 4.75" [121 mm]
• Dims. B: 4.50" [114 mm]
• Dims. C: 16" [406 mm]
• Weight: 29 lbs
