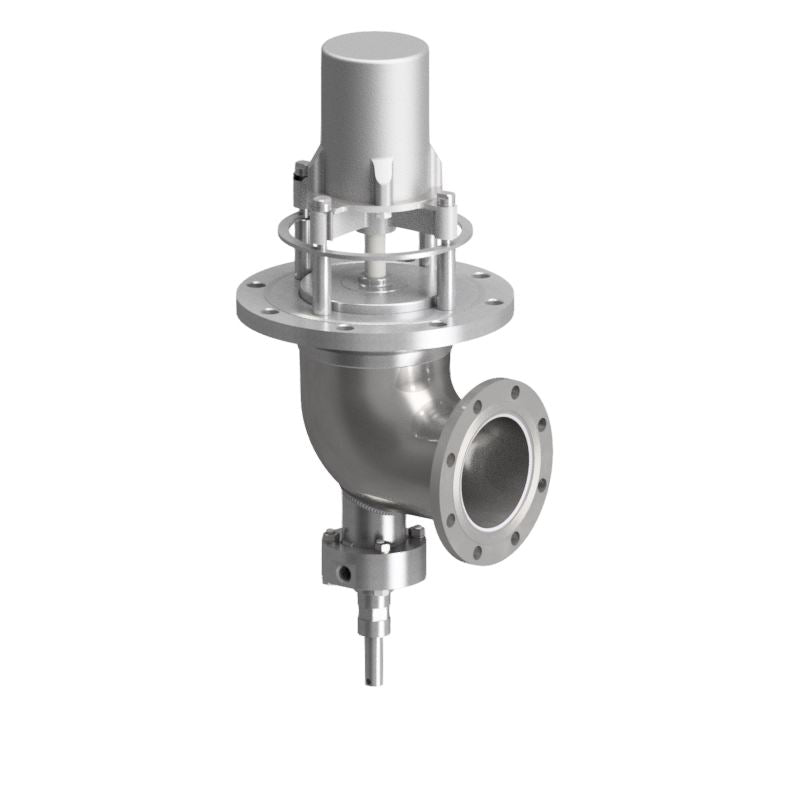

4×3 QUICK CLEAN CHEMICAL HYDRAULIC VALVE (316 SS)

Betts Quick Clean Chemical Hydraulic Valve is classified as an internal self-closing stop valve and is widely used on DOT407 and 12 cargo tanks. The key features of the Quick Clean are a rapid removal spring housing assembly, a self-contained hydraulic actuator and a valve body with a smooth tapered seat.

See the main product page for full details and other available configurations.

Specifications

• Part Number: CH46861SSTS
• Material: 316 SS
• Inlet Flange (4" Sump): B.C.: 07.25" [184 mm] 8 Holes: 0.563" [14.3 mm]
• Outlet (TTMA): B.C.: 4.88 " [124 mm] 8 Holes: 0.438" [11.1 mm]
• Dims.: A: 4.75" [121 mm] B: 4.50" [114 mm] C: Closed 12.05" [307 mm] Open 10.87" [276 mm]
• Weight: 26 lbs
