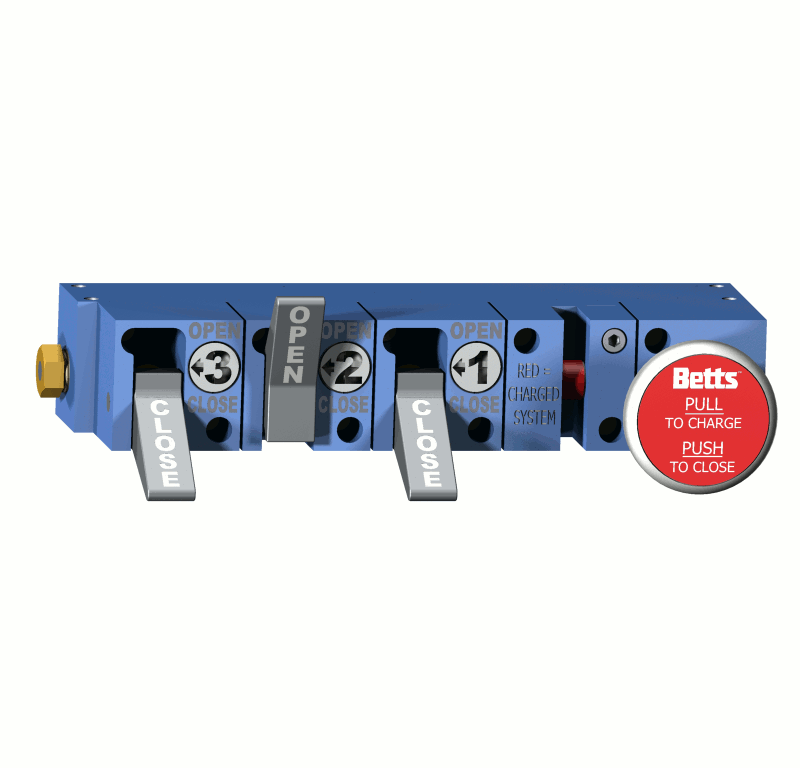

AIR DISTRIBUTOR PUSH/PULL MASTER CONTROL WITH TOGGLES (1 COMPARTMENT)

The Betts Air Commander™ is a reliable universal air distribution system designed to control the operation of, but not limited to, air operated bottom discharge valves and vapor recovery systems on cargo tanks. The air distributor can be plumbed to function sequentially or non-sequentially and is versatile enough to satisfy a wide variety of uses.

See the main product page for full details and other available configurations.

Specifications

• Part Number: AD14PP1ALFS
• Compartments: 1 compartment
• Push/Pull Master Control with Toggles: Pulling out the master control knob supplies constant air to the system and toggles. Can be plumbed sequential and includes integral pressure indicator slide that moves to red position when system is charged. Toggles used to activate desired compartment valves. When loading or unloading is complete, move all toggles to "CLOSE" positions and push master control to shut off air and exhaust entire system.
