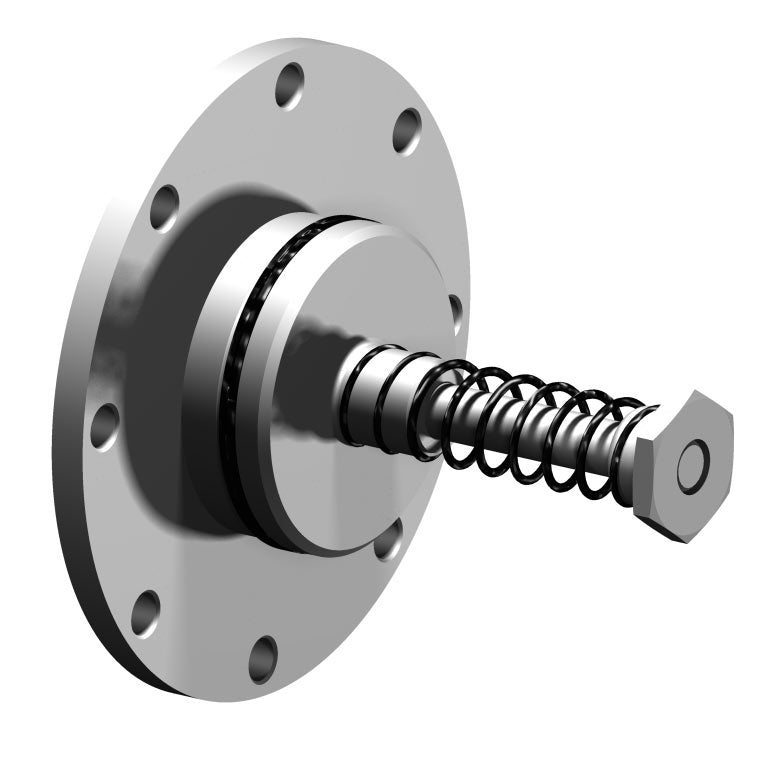

INBREATHING VAPOR RAIL VENT, 4" TTMA FLANGE MOUNT

A supplemental vent designed for installation in tank vehicle vapor recovery system to provide venting protection in the event the vapor recovery system should be closed or blocked while discharging product from the tank. This vent mounts to a 4” TTMA flange. Easily installed Adds tank protection Thru area – six square inches Opening Pressure: 6 oz. per sq. in. Venting Capacity Air: 12,000 cu. ft. hr./1 psig

Specifications

• Part Number: PV26364ALB
• Description: Vent Assembly
• Material: Aluminum/Stainless with Buna-N Disc
• Dimensions: A: 3 3/8 B: 5/8 C: 4 13/16
• Mounting Flange: O.D.: 6 5/8 B.C.: 5 7/8 N.H.: 8 S.H.: 7/16
• Disc Travel: 2"
• Weight: 2 lbs
