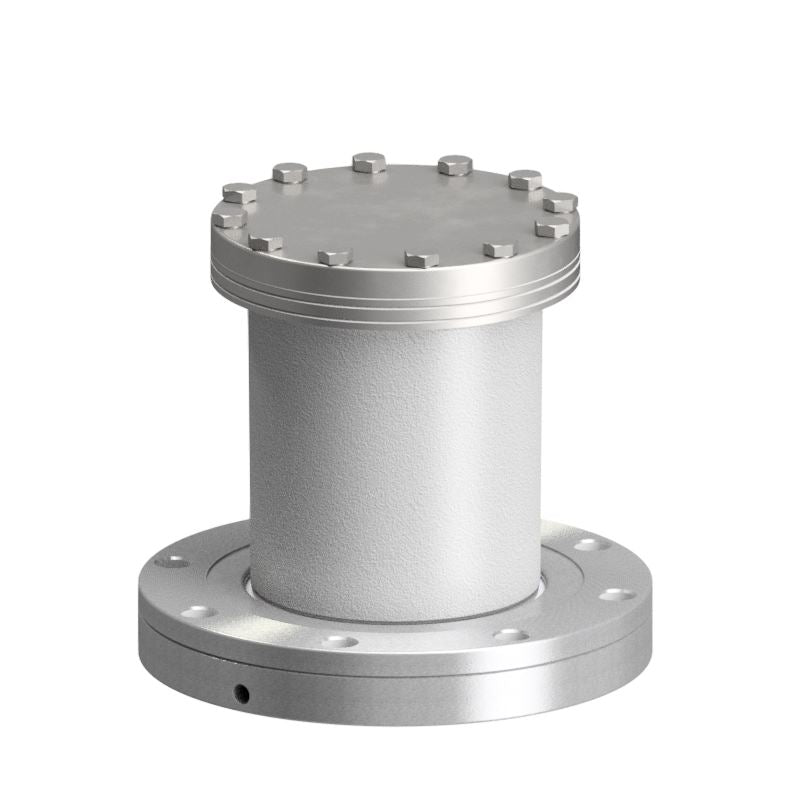

INTERNAL CHEMICAL HYDRAULIC VALVE (316 SS W/ HASTELLOY® TRIM)

Betts Internal Chemical Hydraulic Valve is classified as an internal self-closing stop valve and is widely used on DOT407 and 412 cargo tanks. The design of the internal valve shields the spring, valve seat, and hydraulic actuator safely within the confines of the cargo tank. The 316-stainless body with an optional Hastelloy® overlay seat and replaceable Teflon™ seal make this a versatile and proven valve that satisfies the many requirements of the chemical transportation industry.

See the main product page for full details and other available configurations.

Specifications

• Part Number: CH47003LHT
• Material: 316 SS w/ Hastelloy® trim
• Mounting Flange (4" Sump): B.C.: 7.25" Dia. [184 mm] 8 Holes: .563" Dia. [14.3 mm] O.D.: 8.19" Dia. [208 mm]
• Weight: 31 lbs
