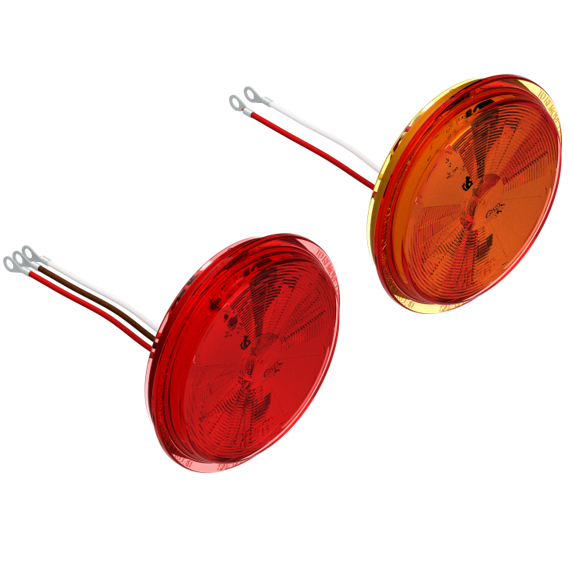

LED LENS ASSEMBLIES – 4″ ROUND – SHALLOW & DEEP – 40, 45 & 47 SERIES (TURN - AMBER SHALLOW LENS WITH OPTICS, 1 LED, 12V/24V, -)

LED lens inserts for 40, 45 & 47 series lamps are used in Betts plastic body recessed and surface mount lamps. Lens inserts feature light emitting diodes to provide marker or tail function that increase to high power output for stop or turn functions. Designed to meet FMVSS 108 requirements (49CFR§571.108) SAE DOT Lighting Codes: IP2ST Supports System Voltages of 12Vdc and 24Vdc Reverse Polarity Protected Covered by Betts’ 5-Year Limited Warranty

See the main product page for full details and other available configurations.

Specifications

• Part Number: TA4XHS2E
• Function: Turn - Amber Shallow Lens with optics, 1 LED, 12V/24V
• Power Tail/Marker: -
• Power Stop/Turn: 2.6 W
• Current Tail/Marker: -
• Current Stop/Turn: 215 mA @ 12V 108 mA @ 24V
