MANUAL 6″ SLIDING VALVE – 6″ THREADED PIPE X TTMA FLANGE (STEEL BODY WITH 316 STAINLESS STEM & GATES)
MANUAL 6″ SLIDING VALVE – 6″ THREADED PIPE X TTMA FLANGE (STEEL BODY WITH 316 STAINLESS STEM & GATES)
Part #
SKU:SV916MSM

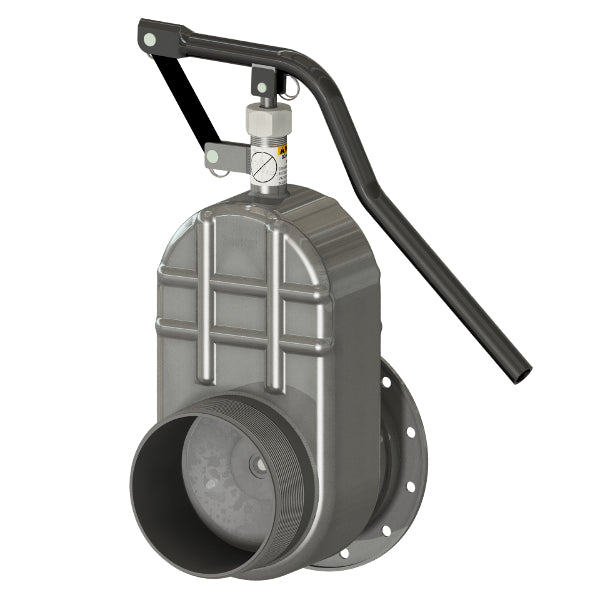

The Betts sliding valve is an economical manually operated external stop valve that provides a quick open or close function. The 316 stainless discs offer premium corrosion resistance and the adjustable packing nut with woven PTFE infused packing allows for easy stem adjustments. The metal to metal seal has advantages for many applications, but is susceptible to wear and scratches.
Specifications
- Part Number: SV916MSM
- Material of Construction: Steel Body with 316 Stainless Stem & Gates
- Flange Dims.: OD: 9.38" [238 mm] BC: 8.13" [206 mm] Holes: 12 - .44" [12 - 11 mm] Thick.: .135" [3.5 mm]
- Dimensions: A: 11.69" [297 mm] B: CLOSE 16.69 " [424 mm] OPEN 31.56" [802 mm] C: N/A D: 5.13" [130 mm] E: 4.03" [102 mm]
- Weight: 30 lbs
