Specific products may differ slightly from the general images shown.

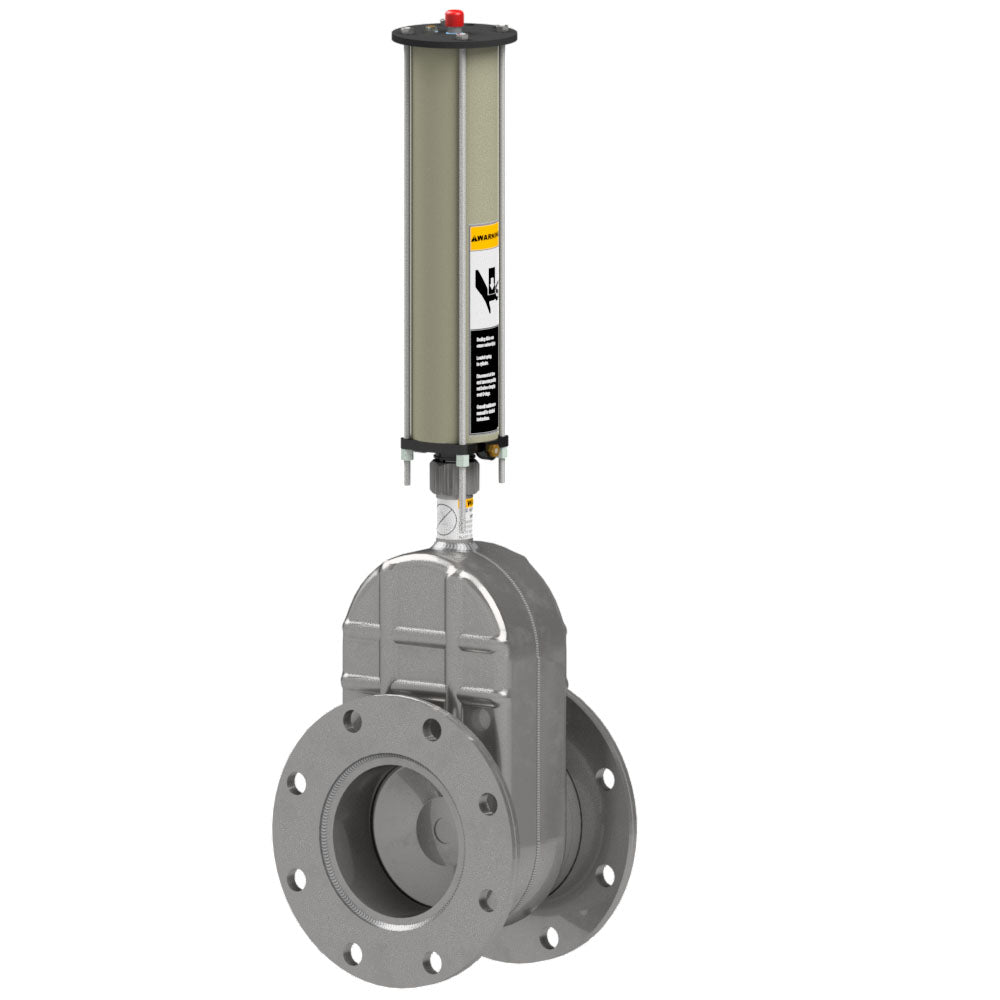

PNEUMATIC OPERATED 6″ SLIDING VALVE (REPLACEABLE O-RING SEAT) – ANSI FLANGE X ANSI FLANGE (STEEL BODY WITH 316 STAINLESS STEM & GATES)
PNEUMATIC OPERATED 6″ SLIDING VALVE (REPLACEABLE O-RING SEAT) – ANSI FLANGE X ANSI FLANGE (STEEL BODY WITH 316 STAINLESS STEM & GATES)
Part #
SKU:SV756MSTS
Air Open / Spring Close Teflon Encapsulated Seats TTMA, ANSI, or Sump Flange Drilling The Betts Pneumatic sliding valve meets requirements for an external self-closing stop valve. Valve does not contain a shear section. The cargo tank must protect the valve by providing suitable protection as specified in 49 CFR 178.345-8.
See the main product page for full details and other available configurations.
Specifications
- Part Number: SV756MSTS
- Seal / Trim Option: Steel Body with 316 Stainless Stem & Gates
- Description: ANSI Flange x ANSI Flange
- A: 30.34" [771 mm]
- B: 37.75" [959 mm]
- C: 8.00" [203 mm]
- D: N/A
- E: N/A
- Weight: 48 lbs
