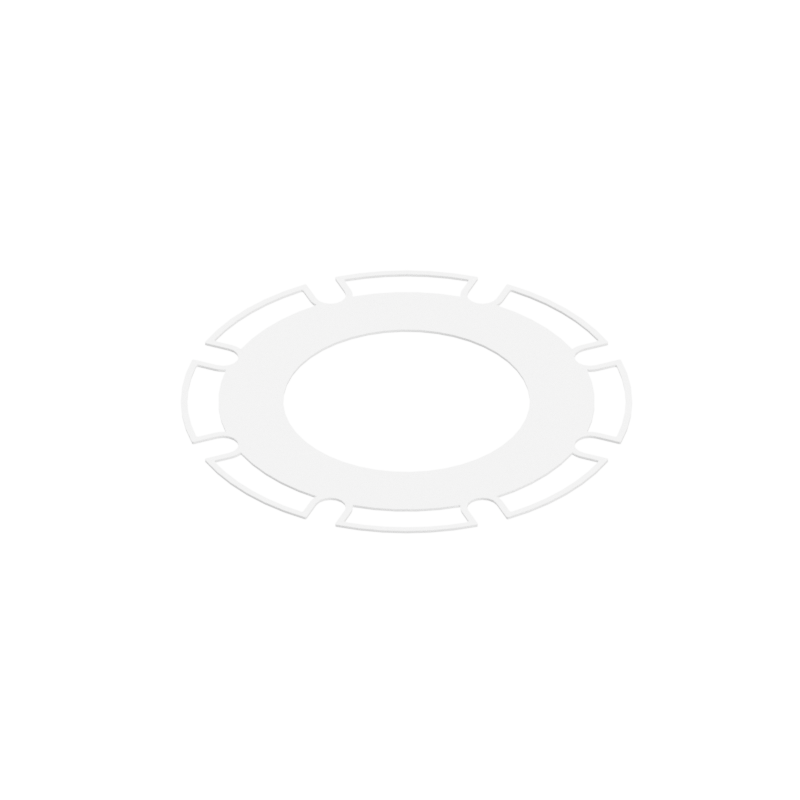

SPECIAL 4″ SUMP GASKET FOR INTERNAL HYDRAULIC VALVE (TTMA), PTFE
SPECIAL 4″ SUMP GASKET FOR INTERNAL HYDRAULIC VALVE (TTMA), PTFE
Part #
SKU:G27229TD
Brand
Betts
Regular price
$54.92
Regular price
Sale price
$54.92
USUALLY SHIPS IN 1-2 WEEKS
The Special 4″ Drain Sump Gasket is used with mounting the Internal Chemical Hydraulic Valve. The smaller internal diameter (ID) of the gasket fills the gap that would be there if a standard 4″ Sump Gasket is used. The special gasket mounts between the Internal Valve and the Shear Elbow. Bolt-hole pattern is in accordance with TTMA recommended practice.
Specifications
- Part Number: G27229TD
- Material Description: Reduced Surface Area PTFE w/ Inorganic Fillers (One piece solid gasket)
- Thickness: .063" [1.6 mm]
- Temp. Range: -350 to 520°F (-212 to 271°C)
- I.D.: 4.50" [114 mm]
- O.D.: 8.25" [209.6 mm]
- B.C.: 7.25" [184.2 mm]
- # of Holes: 8
- Hole Dia.: .56" [14.2 mm]
