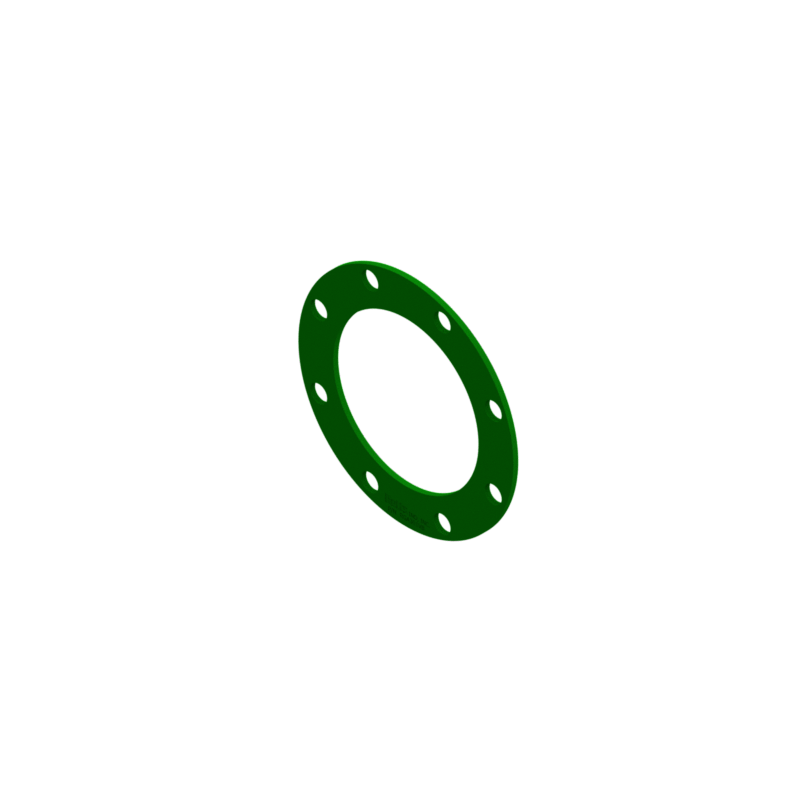

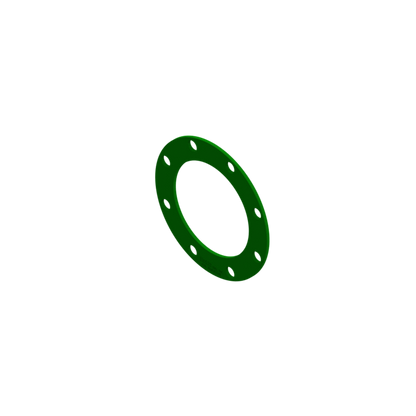

3″ PIPING FLANGE GASKET (TTMA) (ROUND FLANGE, 3.25" I.D.)

Betts flange gaskets are available in a variety of compounds in order to satisfy a wide range of service requirements. The full-face gaskets are ideal for low-torque sealing applications on sumps, valve flanges and piping flanges. Bolt-hole patterns are in accordance with TTMA recommended practice. Depending on gasket size, all materials may not be available.

See the main product page for full details and other available configurations.

Specifications

• Part Number: RGA302TF
• I.D.: 3.25" [82.6 mm]
• O.D.: 5.63" [142.9 mm]
• B.C.: 4.88" [123.8 mm]
• # of Holes: 8
• Hole Dia.: .44" [11.2 mm]
