• SKU ACOX-512A

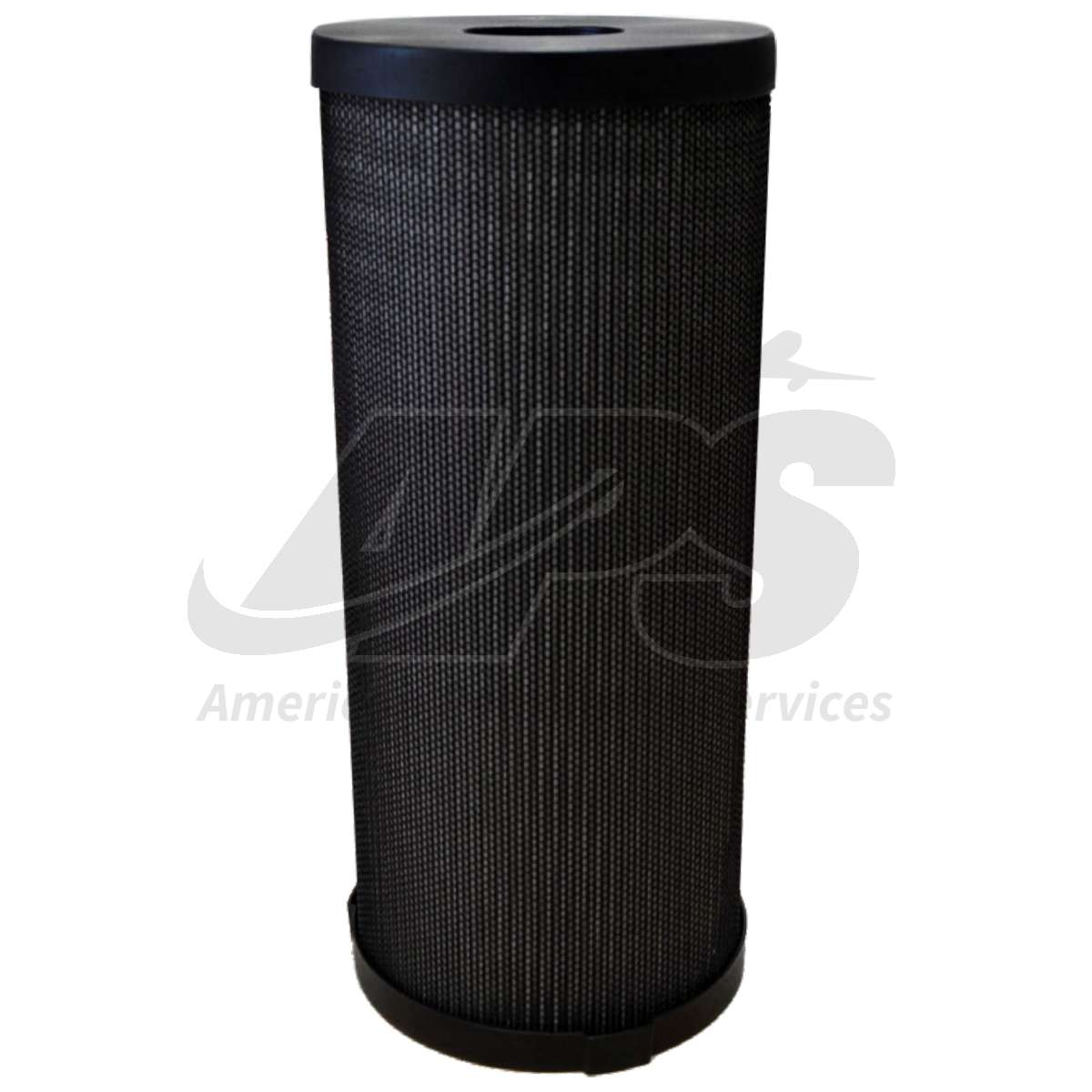

ACOX-512A WATER BARRIER FILTER MONITOR

With our barrier technology, current filtration equipment at FBO and fixed fueling sites with lower flow rate systems can easily adapt this alternative solution. Parker Velcon SAP-free barrier filtration provides a drop-in replacement for our monitor cartridges used in models VF-61, VF-62, VF-609 and similar competitors housings.

Description

Our new surface/barrier filter element is manufactured using a very fine hydrophobic material that prevents solids and water from passing through. There is absolutely no SAP used in this filter. Solids are held within the element while water is repelled by the hydrophobic material and falls to the bottom of the vessel.

With our ACO-X element range, there is no need for expensive & costly retrofitting of filtration systems for smaller into-plane fueling applications. ACO-X filter elements are a true direct drop-in replacement for the various filter housings.

Filter Housing
Model
Fuel Flow Rate
GPM (LPM)
Element
Model
Note
VF-61 AVGAS
Jet
48 (182) ACOX-512A Effective against dirt
and water. Can be used with fuel
containing FSII.
VF-62 AVGAS
Jet
96 (363) ACOX-524A Effective against dirt
and water. Can be used with fuel
containing FSII.
VF-609
VF-21SB*
AVGAS
Jet
36 (136) ACOX-609A Effective against dirt
and water. Can be used with fuel
containing FSII.
VF-22SB* AVGAS
Jet
48 (182) ACOX-612A Effective against dirt
and water. Can be used with fuel
containing FSII.
VF-61SS**
VFH-1***
AVGAS
Jet
56 (212) ACOX-614A Effective against dirt
and water. Can be used with fuel
containing FSII.
OPTIONAL DIFFERENTIAL PRESSURE GAUGE ASSEMBLY AVAILABLE:
P/N 10678 FOR VF-61, VF-61E, VF-62
*Manufactured by Facet **Manufactured by Warner Lewis ***Manufactured by Faudi
  • Features

    • Water and dirt are prevented from passing downstream allowing only clean, dry fuel.
    • Drop in solution for existing housings without the need for costly retrofitting or addition of electronic sensors.
    • No SAP materials used in the manufacture of ACO-X series of elements.
    • Effective against low-water emulsions and water slugs.
    • Effective in fuel containing FSII (anti-icing additive).
    • Meets the effluent fuel quality and structural requirements of EI-1588.
