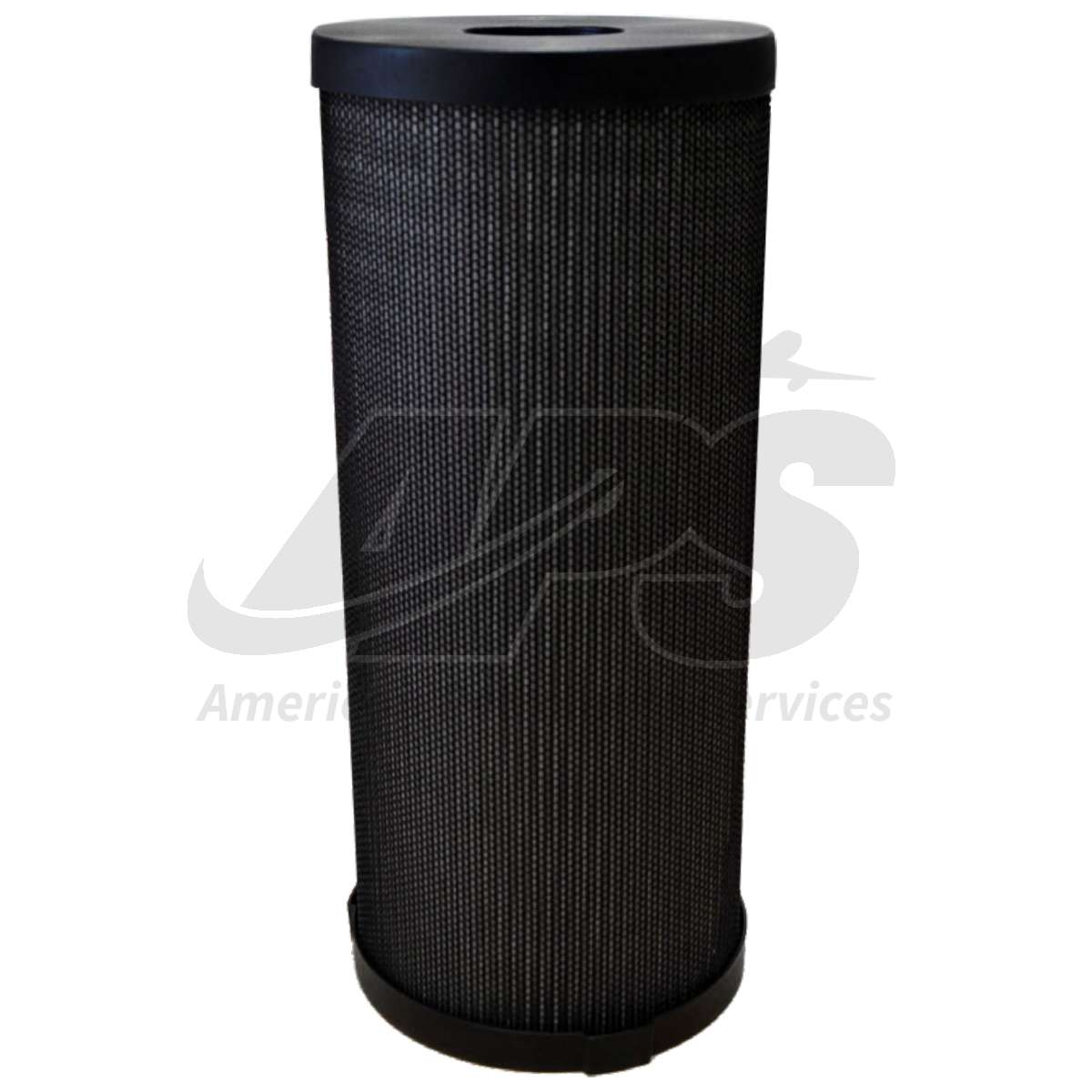

ACOX-512B WATER BARRIER FILTER MONITOR
ACOX-512B WATER BARRIER FILTER MONITOR
Part #
SKU:ACOX-512B
✔ 11 IN STOCK
Our new surface/barrier filter element is manufactured using a very fine hydrophobic material that prevents solids and water from passing through. There is absolutely no SAP used in this filter. Solids are held within the element while water is repelled by the hydrophobic material and falls to the bottom of the vessel.
With our ACO-X element range, there is no need for expensive & costly retrofitting of filtration systems for smaller into-plane fueling applications. ACO-X filter elements are a true direct drop-in replacement for the various filter housings.
| Filter Housing Model |
Fuel | Flow Rate GPM (LPM) |
Element Model |
Note |
|---|---|---|---|---|
| VF-61 | AVGAS Jet |
48 (182) | ACOX-512A | Effective against dirt and water. Can be used with fuel containing FSII. |
| VF-62 | AVGAS Jet |
96 (363) | ACOX-524A | Effective against dirt and water. Can be used with fuel containing FSII. |
|
VF-609 VF-21SB* |
AVGAS Jet |
36 (136) | ACOX-609A | Effective against dirt and water. Can be used with fuel containing FSII. |
| VF-22SB* | AVGAS Jet |
48 (182) | ACOX-612A | Effective against dirt and water. Can be used with fuel containing FSII. |
|
VF-61SS** VFH-1*** |
AVGAS Jet |
56 (212) | ACOX-614A | Effective against dirt and water. Can be used with fuel containing FSII. |
| OPTIONAL DIFFERENTIAL PRESSURE GAUGE ASSEMBLY AVAILABLE: P/N 10678 FOR VF-61, VF-61E, VF-62 |
||||
| *Manufactured by Facet **Manufactured by Warner Lewis ***Manufactured by Faudi | ||||
Features
- Water and dirt are prevented from passing downstream allowing only clean, dry fuel.
- Drop in solution for existing housings without the need for costly retrofitting or addition of electronic sensors.
- No SAP materials used in the manufacture of ACO-X series of elements.
- Effective against low-water emulsions and water slugs.
- Effective in fuel containing FSII (anti-icing additive).
- Meets the effluent fuel quality and structural requirements of EI-1588.
